01 Regresión Lineal#
Derivando soluciones
Usando Scikit-Learn
Versión v.2#
El notebook lo puedo modificar, esta versión es la v.1 a 24/05/2024 a l pm de Caracas.
Autor: Fernando Crema García Contacto: fernando.cremagarcia@kuleuven.be; fernando.cremagarcia@esat.kuleuven.be
Regresión lineal#
Consideremos el problema de Regresión lineal : $\(y = \mathbf{X} \theta_* + \epsilon \text{ con }\)$
\(\mathbf{X} \in \mathbb{R}^{n,p}\) a nuestra matriz de datos.
\(\epsilon \in \mathbb{R}\) el ruido aleatorio definido como una variable aleatoria Normal con media \(0\) y varianza \(\sigma^2\), esto es, \(\epsilon \sim \mathcal{N}(\mu=0,\,\sigma^{2})\)
\(y \in \mathbb{R}^n\) es nuestro vector a predecir que llamamos comunmente vector respuesta y del cual asumimos una relación lineal con \(\mathbf{X}\).
\(\theta_* \in \mathbb{R}^m\) es el modelo óptimo.
Supongamos que tenemos una muestra aleatoria de (\(X, \mathbf{y}\)) de tamaño \(n\) para ambas \(\mathbf{X}\) y \(y\) entonces \(X \in \mathbb{R}^{n \times p}\) y \(\mathbf{y} \in \mathbb{R}^n\). El obketivo principal es conseguir \(\theta_*\).
Formulación de regresión lineal:#
El problema a resolver es:
\[OLS\;\;\underset{\theta,\mathbf{\hat{e}}}{min}\;\;\frac{1}{2}\|\mathbf{\hat{e}}\|_2^2\;\;s.t.\]
\[\mathbf{y} - X \theta = \mathbf{\hat{e}}\]
\[\theta \in \mathbb{R}^p,\;\;y, \mathbf{\hat{e}} \in \mathbb{R}^n,\;\;X \in \mathbb{R}^{n \times p}\]
Derivando las ecuaciones normales#
Solución analítica (Ecuaciones normales)#
\[ X^T X \theta = X^T y \Rightarrow \theta = (X^T X)^{-1}X^T y \]
Nuestro primer modelo#
import numpy as np
x = np.random.randn(10)
np.size(x)
10
ones = np.ones(10)
X = np.stack([x, ones], axis=1)
np.size(X)
20
X
array([[-0.8080633 , 1. ],
[-0.2500174 , 1. ],
[ 0.98161629, 1. ],
[-0.32656151, 1. ],
[-0.88471539, 1. ],
[ 1.65161928, 1. ],
[ 2.82752818, 1. ],
[-0.96407817, 1. ],
[ 0.48651643, 1. ],
[ 0.16247403, 1. ]])
np.matrix?
input_matrix = []
# Tuple
for xi, onesi in zip(x, ones):
input_matrix.append("{} {}".format(xi, onesi))
X = np.matrix(";".join(input_matrix))
X
matrix([[-0.8080633 , 1. ],
[-0.2500174 , 1. ],
[ 0.98161629, 1. ],
[-0.32656151, 1. ],
[-0.88471539, 1. ],
[ 1.65161928, 1. ],
[ 2.82752818, 1. ],
[-0.96407817, 1. ],
[ 0.48651643, 1. ],
[ 0.16247403, 1. ]])
X
matrix([[ 0.21262992, 1. ],
[-1.4821317 , 1. ],
[-0.02905379, 1. ],
[-0.31234722, 1. ],
[ 0.05402455, 1. ],
[ 1.69872219, 1. ],
[ 2.37489091, 1. ],
[-0.74516778, 1. ],
[-1.31825004, 1. ],
[-1.46539355, 1. ]])
Modelo teórico#
beta_star = np.array([2.0, 3.0])
y = np.dot(X, beta_star)
y
matrix([[1.3838734 , 2.4999652 , 4.96323258, 2.34687698, 1.23056921,
6.30323856, 8.65505636, 1.07184366, 3.97303287, 3.32494805]])
y.size(
type(y)
numpy.matrix
viendo la componente \(y_1\)#
y[0][0] * 2.0 + 3.0
matrix([[ 5.7677468 , 7.9999304 , 12.92646515, 7.69375395, 5.46113842,
15.60647713, 20.31011272, 5.14368732, 10.94606574, 9.6498961 ]])
Buscar las soluciones usando las ecuaciones normales#
from numpy.linalg import inv as inversa
import pandas as pd
\(\beta_* = (X^T X)^{-1} X^{T} y \)
def ecuaciones_normales_no(X, y):
"""
:param X: La matriz de datos
:param y: El vector de observaciones
:returns: El vector beta estrella
"""
return np.dot(np.dot(inversa(np.dot(X.T, X), X.T, y)))
def ecuaciones_normales(X, y):
"""
:param X: La matriz de datos
:param y: El vector de observaciones
:returns: El vector beta estrella
"""
return inversa(X.T @ X) @ X.T @ y
X @ beta_star
matrix([[1.3838734 , 2.4999652 , 4.96323258, 2.34687698, 1.23056921,
6.30323856, 8.65505636, 1.07184366, 3.97303287, 3.32494805]])
Transpuesta#
np.transpose(X)
matrix([[-0.8080633 , -0.2500174 , 0.98161629, -0.32656151, -0.88471539,
1.65161928, 2.82752818, -0.96407817, 0.48651643, 0.16247403],
[ 1. , 1. , 1. , 1. , 1. ,
1. , 1. , 1. , 1. , 1. ]])
X.T
matrix([[-0.8080633 , -0.2500174 , 0.98161629, -0.32656151, -0.88471539,
1.65161928, 2.82752818, -0.96407817, 0.48651643, 0.16247403],
[ 1. , 1. , 1. , 1. , 1. ,
1. , 1. , 1. , 1. , 1. ]])
Probando el método#
beta_star
array([2., 3.])
y
matrix([[1.3838734 , 2.4999652 , 4.96323258, 2.34687698, 1.23056921,
6.30323856, 8.65505636, 1.07184366, 3.97303287, 3.32494805]])
y = y.reshape(10, 1)
X
matrix([[ 0.21262992, 1. ],
[-1.4821317 , 1. ],
[-0.02905379, 1. ],
[-0.31234722, 1. ],
[ 0.05402455, 1. ],
[ 1.69872219, 1. ],
[ 2.37489091, 1. ],
[-0.74516778, 1. ],
[-1.31825004, 1. ],
[-1.46539355, 1. ]])
ecuaciones_normales(X, y)
matrix([[2.],
[3.]])
import matplotlib.pyplot as plt
!pip install <paquete>
beta_star = beta_star.reshape(2, 1)

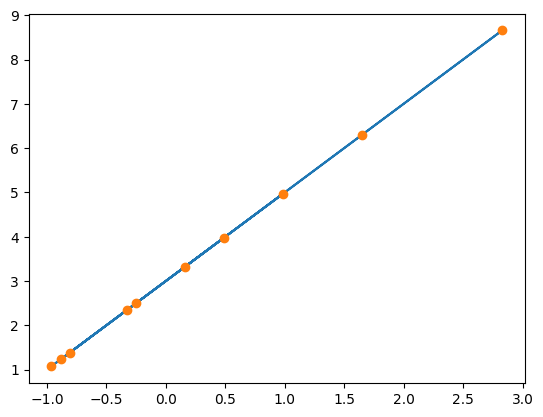

plt.plot(X[:, 0], X @ beta_star, X[:, 0], y, 'o')
[<matplotlib.lines.Line2D at 0x7dfaf2e77790>,
<matplotlib.lines.Line2D at 0x7dfaf2e00880>]

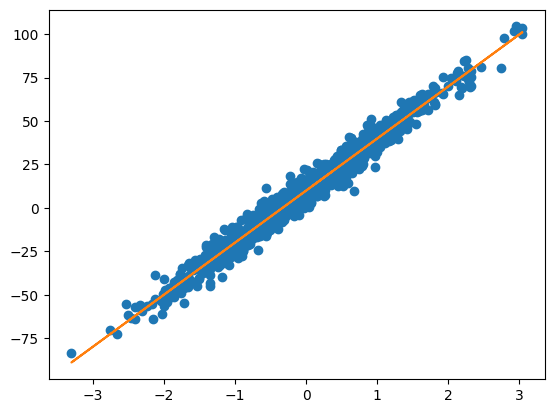

Agregando ruido#
# np.random.randn ~ N(0, 1) en clases vimos que el ruido N(0, sigma)
# Las columnas ahora siguen Y = 30 X + 10 + ruido
X = np.stack([np.random.randn(1000), np.ones(1000)], axis=1)
X
array([[-1.07445498, 1. ],
[ 2.26035941, 1. ],
[ 0.05507815, 1. ],
...,
[-0.22494241, 1. ],
[-1.87232309, 1. ],
[-0.57393463, 1. ]])
beta = np.array([30, 10])
Sobrecarga de operadores#
np.random.randn() -> un valor en R lo multiplico por 5
y = X @ beta + 5*np.random.randn(1000)
y
beta_star_nuevo = ecuaciones_normales(X, y)
beta_star_nuevo
array([29.93435641, 9.91365681])
plt.plot( X[:, 0], y, 'o', X[:, 0], X @ beta_star_nuevo)
[<matplotlib.lines.Line2D at 0x7dfaf0b98df0>,
<matplotlib.lines.Line2D at 0x7dfaf0b98eb0>]
from sklearn.linear_model import LinearRegression
En general, todos los objetos (names) de SK Learn tienen asociado el método fit (entrenar). Si es un problema de regresión o de clasificación buscamos \(f(X) = y\) como tenemos nuestros datos \(X\) y el vector de salidas \(y\) el método siempre recibe ambas en ese orden.
model = LinearRegression().fit(X, y)
Tres opciones para generar el modelo usando SK Learn#
# Abre un menu al lado derecho con métodos, parámetros y ejemplos de uso del modelo
model?
coef_ siempre tendrá los parámetros entrenamos de \(\beta\) SIN el punto de corte
model.coef_
array([29.93435641, 0. ])
el punto de corte que en clases hemos llamado \(\beta_0\) está en intercept_
model.intercept_
10.027010864725078
La primera manera de entrenar es agregando la columna de 1s y quitando el intercept
model1 = LinearRegression(fit_intercept=False).fit(X, y)
model1.coef_
array([29.99734383, 10.02701086])
model1.intercept_
0.0
La segunda manera de entrenar es usando solamente los datos relevantes (columna sin 1s) y el intercept tendrá el punto de corte porque fit_intercept no es False
model3 = LinearRegression().fit(X[:, 0].reshape(1000, 1), y)
model3.coef_
array([29.93435641])
model3.intercept_
9.913656812204634
Por último, el \(\beta^*\) lo podemos crear concatenando ambos valores. Sin embargo, TAREA: existe una manera de obtener el modelo como parámetro.
beta_star_scikit = np.array([model3.coef_[0], model3.intercept_])
beta_star_scikit
array([29.99734383, 10.02701086])
Nos da el mismo modelo que usando las ecuaciones normales
array([29.99734383, 10.02701086])
Comentarios#
No nos da 30, 10 exactamente por el ruido asociado.
Si el ruido asociado sigue N(0, sigma) entonces regresión lineal debería funcionar bien
Si el ruido asociado NO es normal, no va a funcionar bien.
Cómo sabemos que un modelo “es bueno”?#
Gráfico tomado de Coefficient of determination
\[R^2=1-\frac{\color{blue}{S S_{\mathrm{res}}}}{\color{red}{S S_{\mathrm{tot}}}}\]
De donde $\(\color{blue}{S S_{\mathrm{res}}} = \sum_i\left(y_i-f(x_i)\right)^2=\sum_i e_i^2 \)\( y \)\(\color{red}{S S_{\mathrm{tot}}} = S S_{\mathrm{tot}}=\sum_i\left(y_i-\bar{y}\right)^2 \)$
Vean como el denominador es constante para todos los posibles modelos!
Cuáles son los posibles valores de \(R^2\)
